Understanding Fingerprint Features and Interpretation

Fingerprint recognition depends on more than a similarity score. A reliable comparison requires usable images, meaningful ridge detail and careful interpretation of the features shared by two samples. Understanding how these elements work together helps biometric system users assess uncertain results and decide when manual review or recapture is needed. This article explains the three levels of fingerprint features, the role of capture quality, and the steps that connect automated matching with human review.

Three levels of fingerprint features

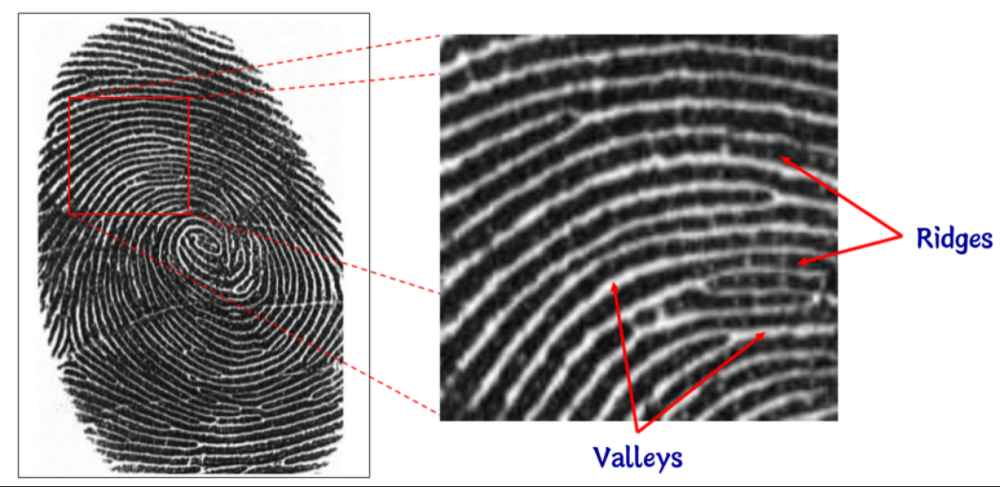

Fingerprints consist of raised ridges separated by recessed valleys. Their patterns develop before birth and generally remain stable throughout life, except where severe injury changes the skin. The combination of ridge details provides the information used to distinguish individuals.

Level 1 features describe the overall ridge flow and pattern. Common patterns include arches, tented arches, loops and whorls. A core identifies the central turning region, while a delta marks a triangular region where three ridge flows meet. These features support classification, orientation and initial screening, but a shared pattern alone does not establish identity.

Level 2 features are the minutiae used in detailed comparison. A ridge ending is where a ridge terminates; a bifurcation is where one ridge divides into two. Their locations, directions, types and relative spatial relationships provide the main information for automated matching and manual interpretation. A digital minutia can be represented by its x and y coordinates, direction angle and feature type.

Level 3 features include pores and fine ridge edge detail. Creases and scars can also provide supplementary observations. Such details can help with difficult samples when clearly visible, but they should support the examination of global patterns and minutiae rather than replace it.

Why capture quality comes first

Poor images can obscure genuine minutiae or produce false features through noise, blurred ridges and apparent breaks. This can contribute to false rejection or false acceptance. Quality assessment therefore belongs before matching, rather than being treated as an explanation added after an uncertain result.

Capture quality depends on sensor resolution, signal to noise ratio and capture area, as well as skin condition and user technique. Dryness, moisture, scratches, peeling and worn ridges can reduce visible detail. Excessive or uneven pressure, rotation and partial contact can distort the image or leave too little usable coverage.

NIST Fingerprint Image Quality, or NFIQ, provides a numerical quality assessment. The version matters: NFIQ 1 uses a scale from 1 to 5, with 1 indicating better quality, whereas NFIQ 2 uses 0 to 100, with higher scores indicating better quality. These values describe image quality; they are not identity match scores.

A sharp image can still produce a low match score if the samples cover different regions or pressure has altered their spatial relationships. Reviewers therefore need to examine overlapping coverage and distortion alongside image clarity.

From ridge images to matching results

A typical processing workflow begins with capture and quality assessment, followed by image enhancement, ridge region segmentation and minutiae extraction. Enhancement reduces noise and adjusts contrast. Segmentation separates the usable fingerprint region from the background and supports estimation of ridge direction and frequency. Extracted minutiae are then processed to remove false features before a template is generated.

During comparison, the system aligns the samples to account for differences in position, rotation and scale. It then assesses corresponding minutiae within permitted error limits and calculates similarity from the quantity and quality of the correspondences. Nonlinear deformation correction may help compensate for uneven pressure or finger movement. The resulting score needs to be interpreted together with the available image evidence.

A structured approach to manual review

Manual review should start with the global pattern. When both images provide sufficient coverage, a fundamental pattern conflict can help exclude a candidate. Reviewers then examine minutiae, particularly around visible cores and deltas, comparing relative position, direction and type while allowing for natural elastic distortion.

Magnification, rotational alignment and transparent overlays can make corresponding details easier to inspect. Pores, ridge edges and other supplementary observations may provide additional support where image quality permits. Counting extracted minutiae alone is insufficient: feature quality and spatial consistency also matter, and the number of extracted points is not a minimum identity confirmation threshold.

If blur, contamination or missing key features prevents a supported conclusion, the appropriate next step is recapture. Review tools cannot recover evidence that was never captured, and a score or supplementary detail should not be used to force a definite decision.

Resolution and template handling

Resolution should be selected for the details being examined. Capture at 500 dpi or above is a recommended baseline, while observation of microscopic features requires closer attention to higher resolution capability and actual image quality. Specific capabilities should be checked against the device documentation.

Fingerprint templates encode extracted features for storage and comparison, with encryption forming part of the described workflow. ISO/IEC 19794-2 and ANSI/NIST-ITL are relevant references for biometric data representation and exchange. Naming a standard does not establish a particular product’s compliance or storage architecture.

Reliable interpretation brings capture quality, feature correspondence and manual assessment together. When evidence is insufficient, improving the capture provides a stronger basis for the next comparison.
