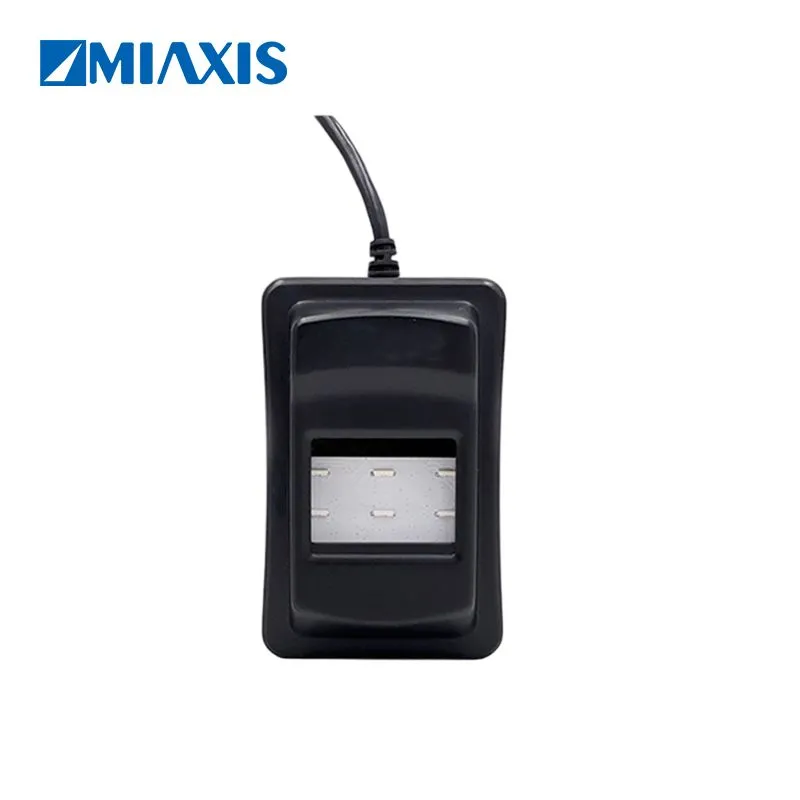

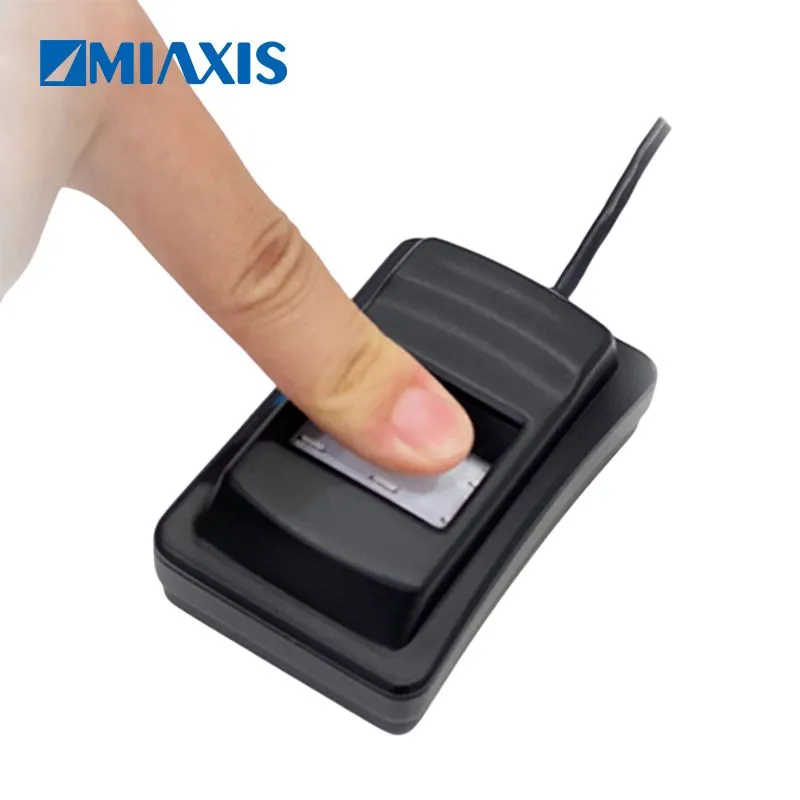

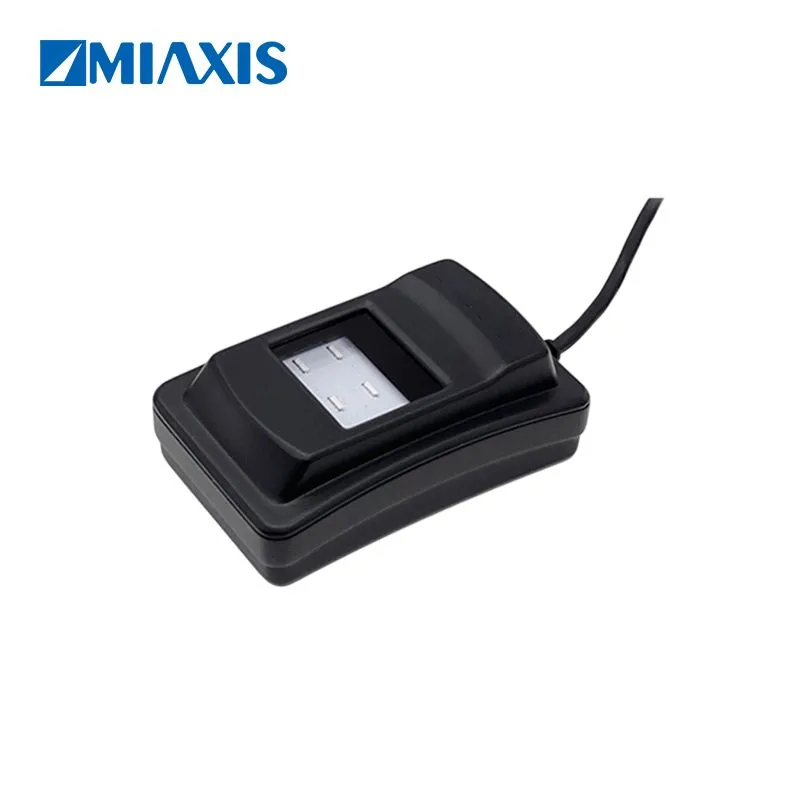

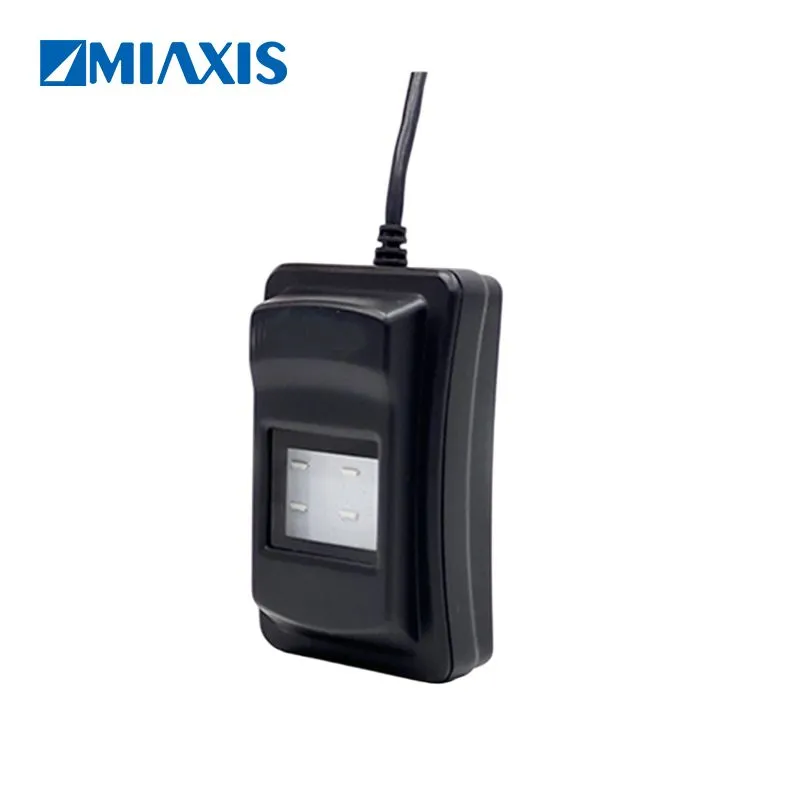

SM-93s Secure FAP30 Optical Fingerprint Scanner

MIAXIS SM-93s (OEM module SM-93M) is an FBI-PIV and FAP30 certified optical fingerprint. It adopts advanced optical sensing technology with a 21.4mm × 27mm large sensing area, delivering high-quality and reliable fingerprint recognition for secure ID verification and IT security applications.

Inquire Now Download Brochure

OVERVIEW

Featuring a multi-angle optical design, the scanner captures detailed biometric data from both the surface and subsurface layers of a fingerprint, ensuring high accuracy, strong anti-spoofing performance, and reliable capture of dry, worn, moist, or dirty fingerprints. It maintains stable performance under varied lighting and environmental conditions, including bright sunlight and extreme temperatures.

FEATURES

Optimized User Experience

Advanced technology ensures fast, reliable fingerprint enrollment and matching, regardless of finger condition.

Enhanced Identity Protection

Built-in fraud detection blocks spoofing attempts to prevent unauthorized access.

Strong Network Security

FBI-certified encryption algorithms protect data, reducing risks to corporate assets and reputation.

Certificates

● FBI PIV and FBI Mobile ID FAP30 certificates

● Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance

● iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified

● MOSIP Compatibility (Optional)

Live Fingerprint Detection

● Machine-learning-based live finger detection technology to differentiate fake fingers

● Auto-reject fake materials including silicon, paper, rubber and more

Easy Integration

● SDKs available for Android, MS Windows and Linux compatible

● UART&USB multiple interfaces

Parameter

Category	Specification	Detail
Dimension	Width (mm)	47.9±0.2
	Sensing Area L x W (mm)	21.4×27
Optical Performance	Image Resolution	500 dpi
	Image Size (W x H pixel)	400 x 500
	Grey Scale	8bit, 256 levels
	Finger Condition Adaptability	Detects subsurface details to capture fingerprints from wet, dry, aged, worn, or dirty fingers
	Image Format	WSQ (Certified, 10:1 & 15:1 compression), JPEG2000, RAW, BMP
	Quality Score	NFIQ 1.0
	Compliance Standards (Image/Template)	ISO 19794-4, ISO 19794-2, ANSI INCITS 381, ANSI INCITS 378
	Live Finger Detection (LFD)	Yes
	Presentation Attack Detection (PAD)	ISO/IEC 30107-3, Level 1 certified (In progress)
Security	Tamper Resistance	Active erase memory zeroization; resistant to physical intrusion (e.g., drilling, lamination)
	Secure Memory	Secure battery-backed memory with active tamper response; data remains secure through power cycles
	Encryption Algorithms	AES 128/192/256, RSA 1024/2048/4096, TDES 2/3 Key, SHA-1/256/384/512, HMAC (variable key length), Random Number Generator, ANSI X9.24 Part 1; DUKPT encryption possible
	Compliance	NIST-certified standards for image and template interoperability; FBI-certified encryption algorithms
Recognition Speed	Enrollment Time	≤0.5s (collect one image and upload by USB); ≤2 seconds for full enrollment
	Authentication Time	≤1 second (on-fingerprint reader)
	Max. Encryption Capture Time	≤4 seconds (includes capture, WSQ compression, encryption, signing, and transfer via USB)
	Matching Mode	1:1 Matching (On-Fingerprint Reader & On-Host); 1:N Identification
Durability	Wear Resistance	Withstands over 1 million touches; resistant to surface wear
	ESD Immunity	IEC 61000-4-2 Level 4 (+/-15kV air discharge, +/-8kV contact discharge); compliant with IEC 61000-6-3 & IEC 61000-6-1
	Ingress Protection	IP65 (Sensor Surface)
Power & Connectivity	Power Supply	USB-powered (DC 5V±5%), ≤200mA
	Communication Interface	USB 2.0 high-speed (480 Mbps); includes 1.5-meter cable (cable length optional)
Environmental Conditions	Operating Temperature	-10°C to +60°C
	Storage Temperature	-20°C to +60°C
	Operating Humidity	20%RH ~ 95%RH
Software & API	Operating System Environment	Linux Kernel 4.15 or higher; Windows 7 or higher; Android 4.1 or higher
	API & Compatibility	Supports ISO 19794-2, ANSI INCITS 378-2, and RSA digital signature verification
Certifications	Key Certifications	FBI-PIV, FAP30, NIST MINEX III (Template Extractor and Matcher), IEC 61000-4-2 Level 4
