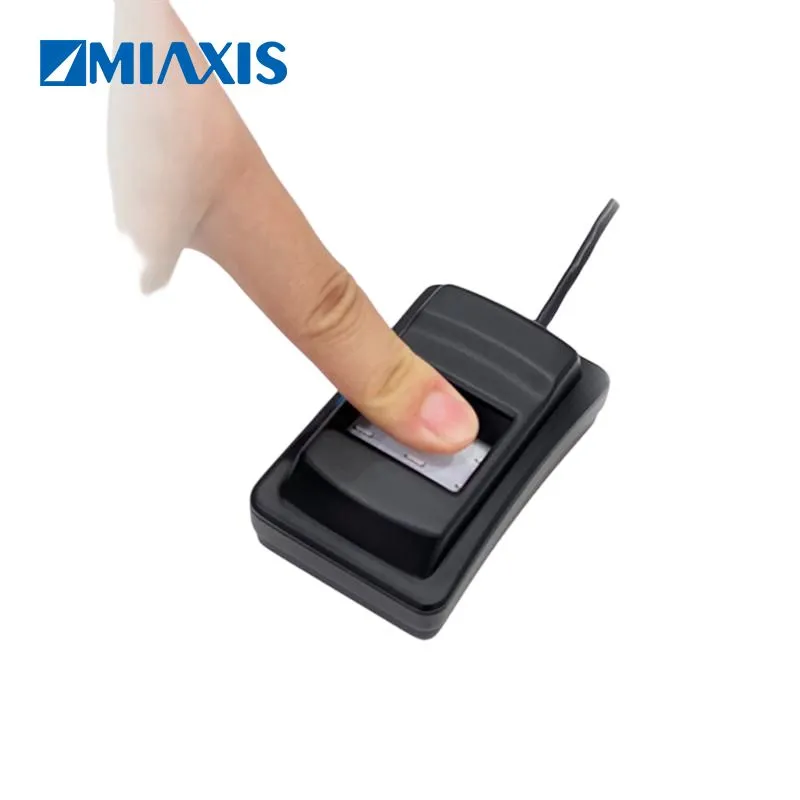

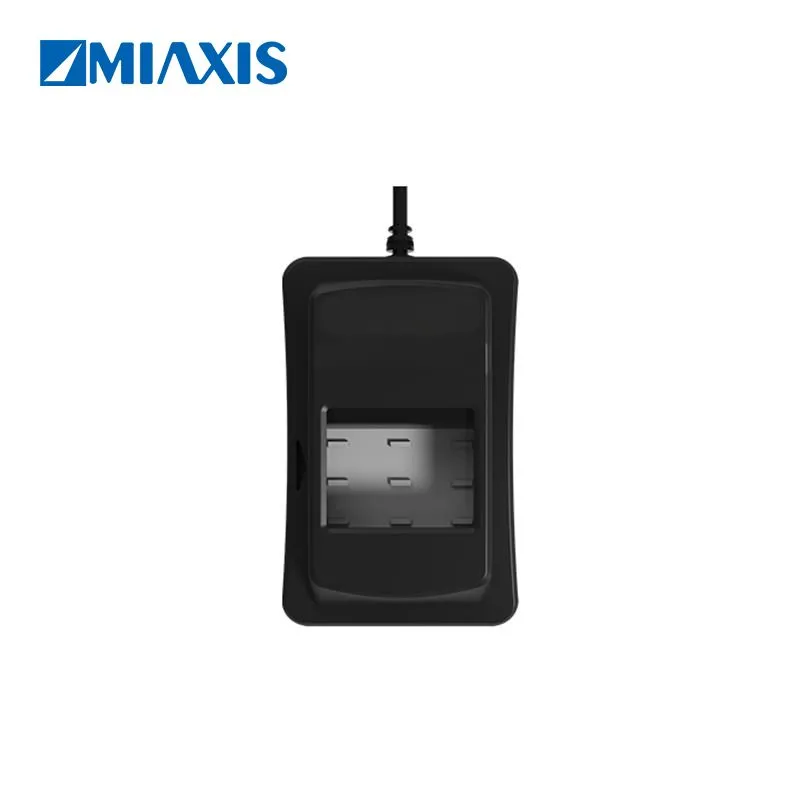

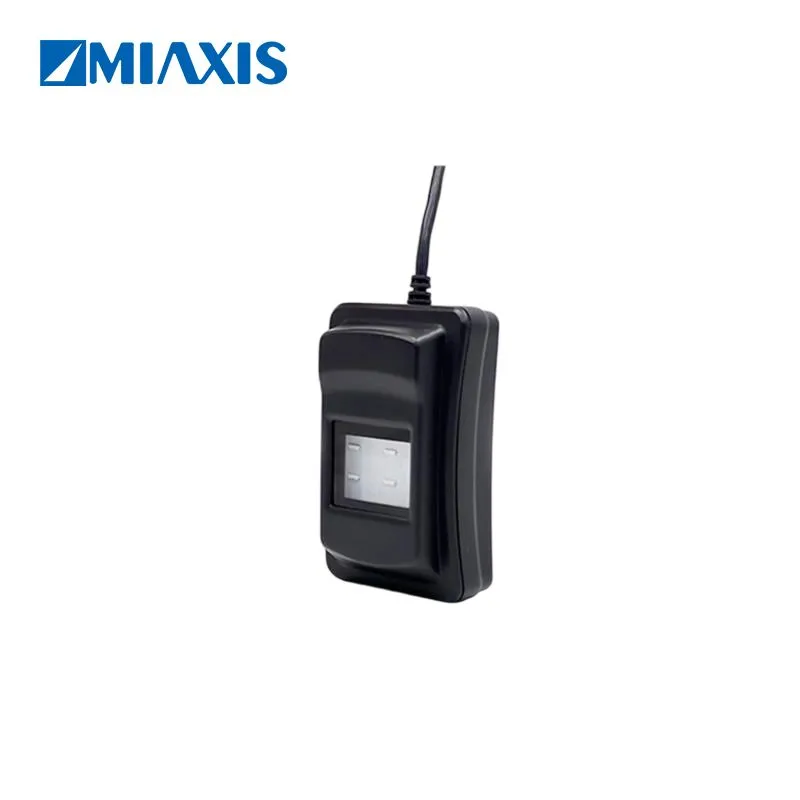

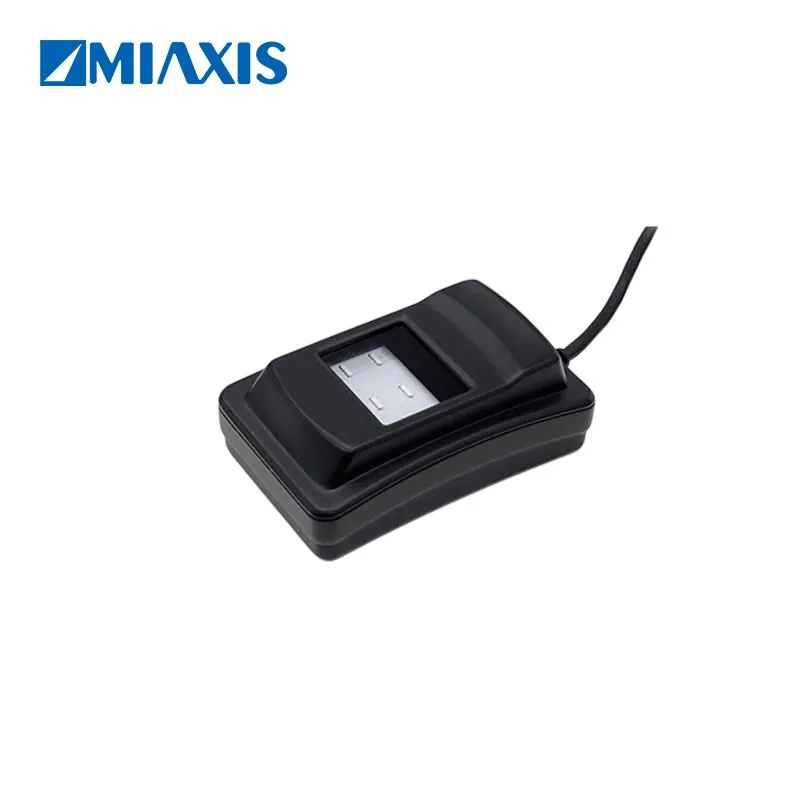

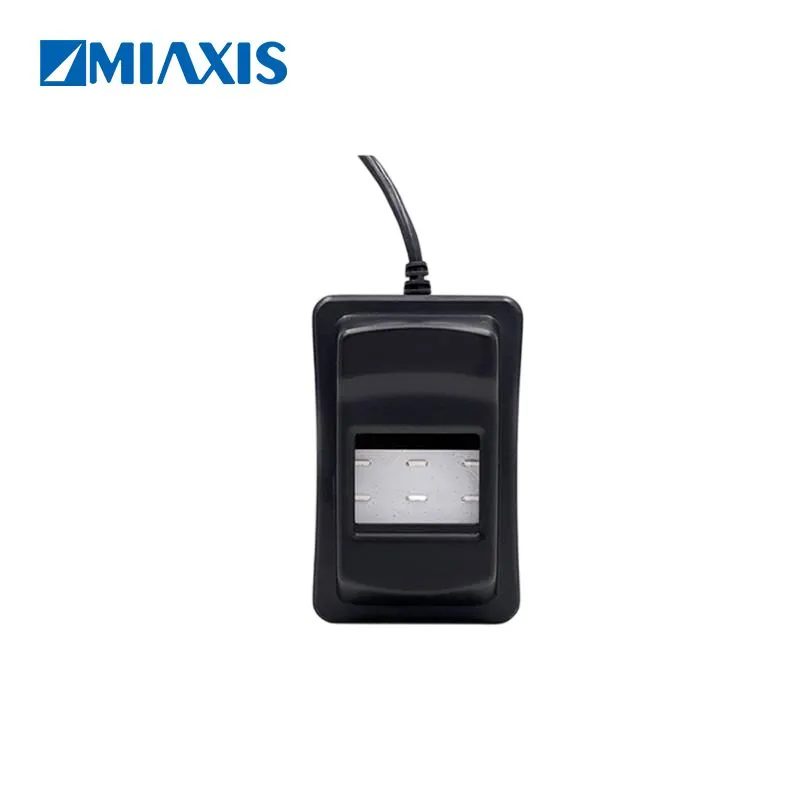

SM-93 Series, FAP30 Optical Fingerprint Scanner
MIAXIS SM-93 Series, FAP30 Optical Fingerprint are all FBI-PIV&FAP20 certified optical fingerprint scanners, each built on corresponding OEM modules as specified in their technical documents:
All models provide mainstream Windows/Android/Linux SDK for easy integration into biometric authentication and individual identity verification scenarios, making them ideal for ID verification and IT security.
OVERVIEW
MIAXIS SM-93 (OEM module SM-93M) is an FBI-PIV & FAP30 certified optical fingerprint scanner. It adopts advanced optical sensing technology, ensuring high-quality fingerprint capture and reliable biometric data performance—ideal for ID verification, IT security, and government authentication applications.
The scanner supports core functions including finger image capture, image encryption, Live Finger Detection (LFD), iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certification, NIST-certified interoperable image & template format standards, and image compression standards. It provides mainstream Windows/Android/Linux SDK for easy integration into biometric authentication and individual identity verification scenarios.
● Standard Version: Focuses on basic fingerprint recognition functions (including PAD capability) to meet general security authentication needs.
● MOSIP Version (Optional): Compliant with MOSIP standards, adding support for SBI 2.0-FTM, suitable for national e-ID programs and large-scale digital ID authentication systems.
FEATURES
Certificates
● FBI PIV and FBI Mobile ID FAP30 certificates
● Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance
● iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified
● MOSIP Compatibility (Optional)
Live Fingerprint Detection
● Machine-learning-based live finger detection technology to differentiate fake fingers
● Auto-reject fake materials including silicon, paper, rubber and more
Easy Integration
● SDKs available for Android, MS Windows and Linux compatible
● UART&USB multiple interfaces
Advanced Algorithm
● Template options: MIAXIS, ISO 19794-2 & ANSI 378
● Miaxis proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance
● Value-added customised APIs for software integration
● Dustproof and Waterproof
● IP65 dustproof and waterproof
Parameter Comparison
| Specification | SM-93 | SM-93 MOSIP |
| Product Size (L x W x H mm) | 82.0×47.9×24.0 | 82.0×47.9×24.0 |
| Sensor Area (L x W mm) | 21.4×26.4 | 21.4×26.4 |
| Weight | 95g | 95g |
| Sensor Type | Optical Sensor | Optical Sensor |
| Image Spec | FBI PIV&FAP30 | FBI PIV&FAP30 |
| Image Resolution | 500 dpi | 500 dpi |
| Image Size (W x H pixel) | 400×500 | 400×500 |
| Grey Scale | 8bit, 256 levels | 8bit, 256 levels |
| Image & Template Format | WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381 | WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381 |
| Quality Score | NFIQ 1.0 | NFIQ 1.0 |
| Live Finger Detection | Yes | Yes |
| Presentation Attack Detection (PAD) | iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified | iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified |
| Latent Detection | Yes | Yes |
| Enrollment Time | ≤0.5s (collect one image and upload by USB) | ≤0.5s (collect one image and upload by USB) |
| Max. Encryption Capture Time (MOSIP) | / | ≤4 seconds (Including capture, WSQ, encryption and signing & transfer via USB) |
| FTM (MOSIP) | / | SBI 2.0-FTM |
| Capturing Indication | Start: Lamp On; End: Lamp Off | Start: Lamp On; End: Lamp Off |
| Supply Voltage | DC5V±5% (USB powered) | DC5V±5% (USB powered) |
| Supply Current (USB powered) | ≤200mA | ≤200mA |
| Communication Interface | Standard USB, Optional: USB Type-C | Standard USB, Optional: USB Type-C |
| ESD Immunity | ±8kV contact discharge; ±15kV air discharge | ±8kV contact discharge; ±15kV air discharge |
| Operating Temperature | -10°C to +50°C | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C | -20°C to +60°C |
| Operating Humidity | 20%RH～90%RH | 20%RH～90%RH |
| Ingress Protection | IP65 (Sensor Surface) | IP65 (Sensor Surface) |
| Operating System Environment | Linux Kernel 4.15+; Windows 7+; Android 4.1+ | Linux Kernel 4.15+; Windows 7+; Android 4.1+ |
