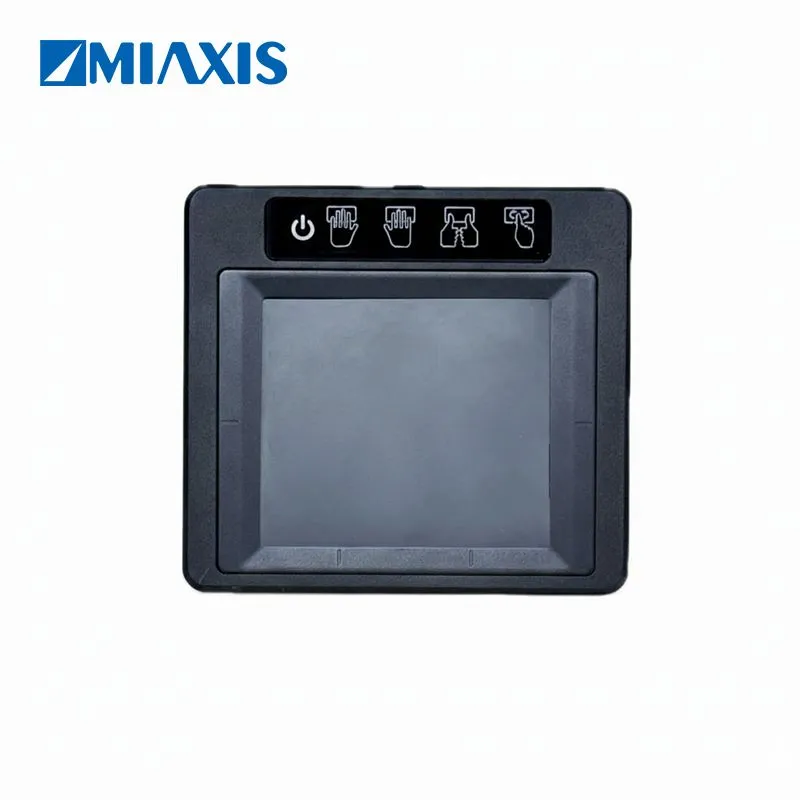

FPR-861 FAP60 Fingerprint OEM Module

MIAXIS FPR-861（OEM Module SM-861） is an ultra-slim and lightweight FAP60 fingerprint scanner, holding FBI Appendix F certification and compliant with the MOSIP Registered Device Specification.

Inquire Now Download Brochure

OVERVIEW

MIAXIS FPR-861（OEM Module SM-861） is an ultra-slim and lightweight FAP60 fingerprint scanner, holding FBI Appendix F certification and compliant with the MOSIP Registered Device Specification.

It is tailor-made for ID authentication systems, integrating MIAXIS® fingerprint algorithm and advanced TFT technology to support large-area fingerprint capture—meeting FBI FAP60 design requirements and enabling the acquisition of super-high-quality fingerprint images. This makes it ideal for biometric authentication and national identity verification program

FEATURES

Certificates:

● FBI-PIV certified Mobile ID FAP60

● Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III compliance

High Image Quality

● Optical fingerprint technology with superior image quality

Compact Design

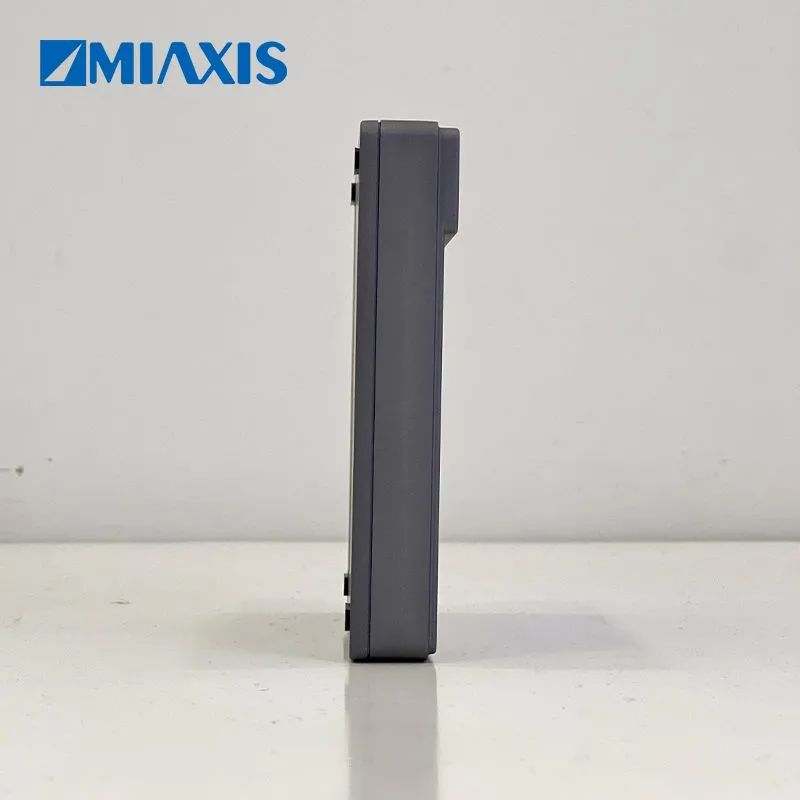

● Extreme compact design at 4.7mm thick

Strong Adaption

● Works well with dry, moist and rough fingerprints

Easy Integration

● SDKs available for Android, MS Windows and Linux compatible

● UART&USB multiple interfaces

Advanced Algorithm

● Template options: MIAXIS, ISO 19794-2 & ANSI 378

● MIAXIS proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance

● Live Fingerprint Detection(LFD) algorithm to differentiate fake fingers

Parameter

Specification	Detail
Dimension (W x L x H mm)	138.0 x 129.0 x 20.5
Capture Size (W x L mm)	81.28 x 76.2 (4 - Finger)
Image Size (W x H pixel)	- 4 - Finger: 1600 x 1500
Image Size (W x H pixel)	- Roll: 800 x 750
FPS (Frames Per Second)	- ≥2 (4 - Finger)
FPS (Frames Per Second)	- ≥10 (Rolls)
Image Quality Standards	FBI IQS Appendix F
Supported Fingerprint Types	Four Finger Flat / Two Finger Flat / Single Flat & Rolls
Image Resolution	500 dpi
Grey Scale	8bit, 256 levels
Image Format	WSQ, JPEG2000, RAW, BMP, ISO 19794 - 4, ANSI 381
Compression Ratio	Up to 15:1
Quality Score	NFIQ v1.0
Ingress Protection	IP65 (Sensor Surface)
Surface Hardness	9H
Operating Temperature	- 10℃ to + 50℃
Storage Temperature	- 20℃ to + 60℃
Operating Humidity	20%RH～90%RH, non - condensing
ESD Immunity	±8kV contact discharge; ±15kV air discharge
Communication Interface	USB2.0 Type - A
Power Supply	DC5V±5% (USB powered)
Supply Current (USB powered)	≤600mA
Operating System Environment	Android 6 or higher; Windows 10 or higher; Linux
