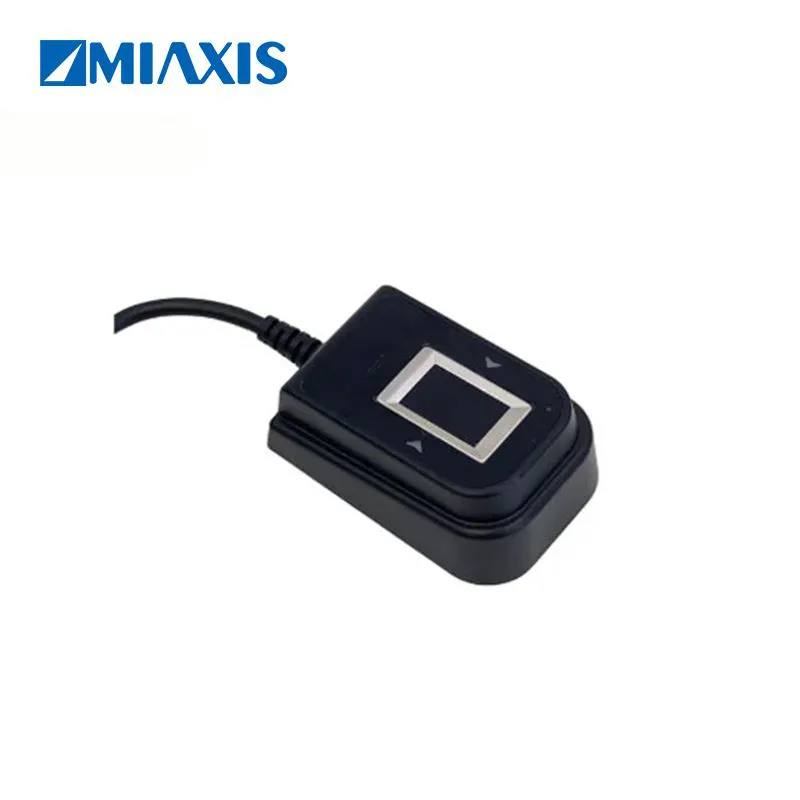

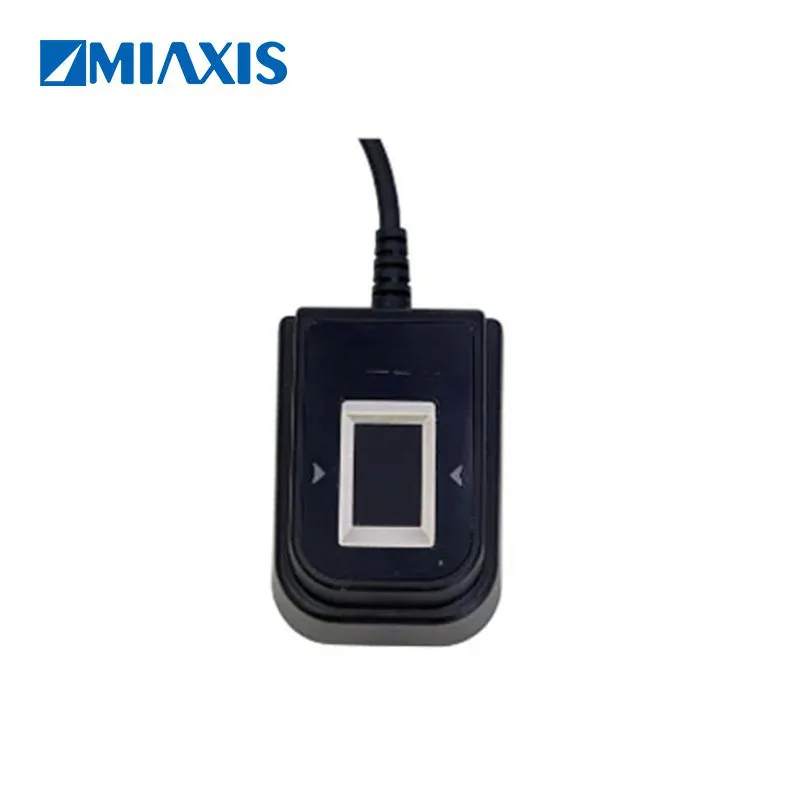

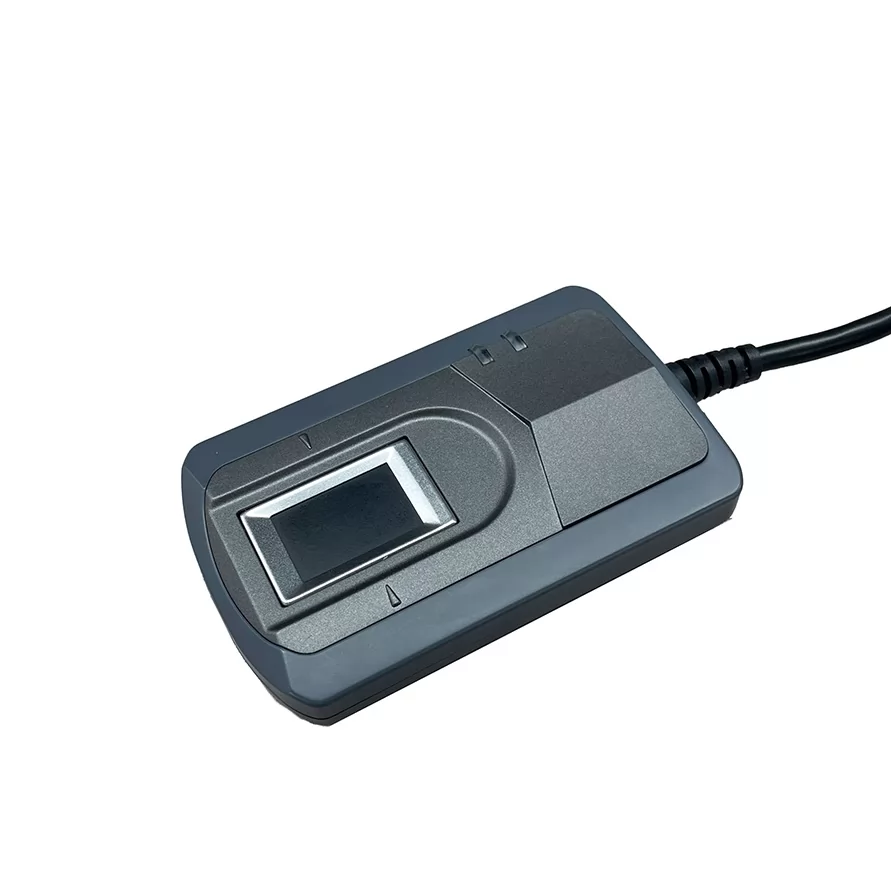

FPR-800 FBI-PIV Certified Capacitive Fingerprint Scanner
MIAXIS SM-92M Series (including SM-92M-S, SM-92M-P, SM-92M, SM-92M-C) are all FBI-PIV&FAP20 certified Optical Fingerprint OEM Modules, designed for large-scale digital ID authentication systems. All models support finger image capture, image/data encryption, live finger detection, and ISO/ANSI template extraction & match functions
OVERVIEW
MIAXIS FPR-800 is an integrated Capacitive Fingerprint Scanner, featured with a large active platen area and FBI-PIV certified high quality 256×360 pixel image in the biometric enrollment process. Its compact design enables easy integration into volume-limited mobile or portable hardware terminals for various identification applications.
FEATURES
Certificates
FBI-PIV certified Mobile ID FAP10
Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III compliance
High Image Quality
Capacitive fingerprint technology with superior image quality
Compact Design
Extreme compact design at 4.7mm thick
Strong Adaption
Works well with dry, moist and rough fingerprints
Easy Integration
SDKs available for Android, MS Windows and Linux compatible
UART&USB multiple interfaces
Advanced Algorithm
Template options: MIAXIS, ISO 19794-2 & ANSI 378
MIAXIS proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance
Live Fingerprint Detection(LFD) algorithm to differentiate fake fingers
Parameter Comparison
| Parameter | Detail |
| Module Size (L x W x H mm) | 71.5×50.0×30.0 |
| Sensor Module | FPR-220 |
| Sensing Area | 14.05mm×22.05mm (0.55”×0.86”) |
| Image Size (pixel) | 256×360 |
| Image Resolution | 508dpi |
| Grey Scale | 256 levels |
| Enrollment Time | ≤250ms |
| Matching Time | ≤100ms |
| Feature Extraction Time | ≤1s |
| Search Time | ≤0.5s (for 200 stored fingerprints) |
| Matching Mode | 1:1 / 1:N |
| Live Finger Detection | Yes |
| False Acceptance Rate (FAR) | ≤0.001% |
| False Rejection Rate (FRR) | ≤1% |
| ESD Immunity | ±8kV contact discharge; ±15kV air discharge |
| Supply Voltage | DC 5V±5% (USB powered) |
| Supply Current (USB powered) | ≤80mA |
| Communication Interface | USB / UART |
| LED Indicator | Red and Green |
| Speaker | Yes |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | <90% RH |
| Image Format | WSQ, JPEG, RAW, BMP, ISO 19794-4, ANSI 381 |
| Operating System Environment | Linux Kernel 3.X or higher; Windows 7 or higher; Android 5.1 or higher |
| Net Weight | 110g |
