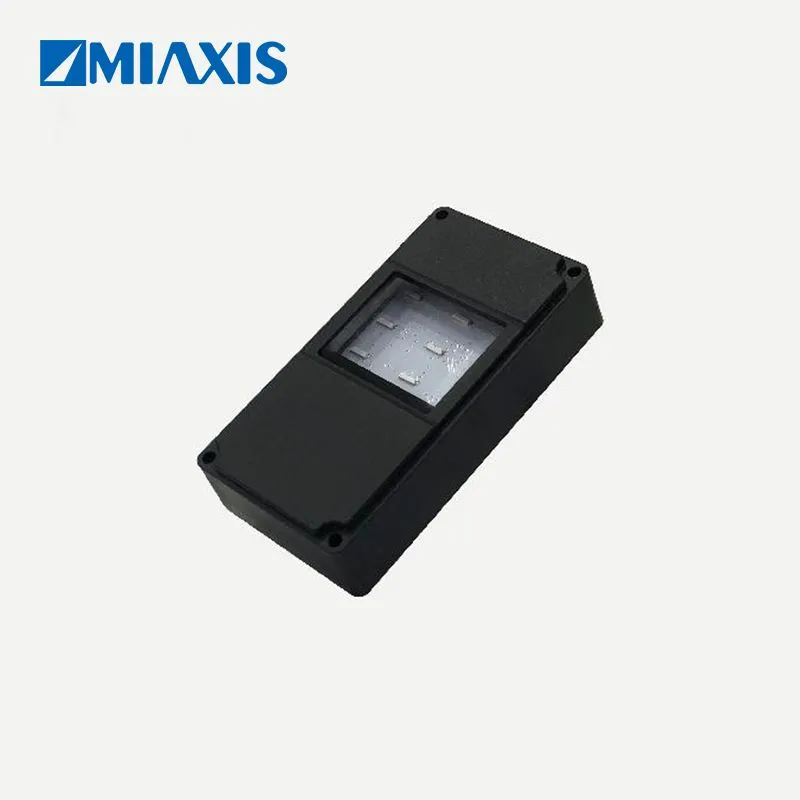

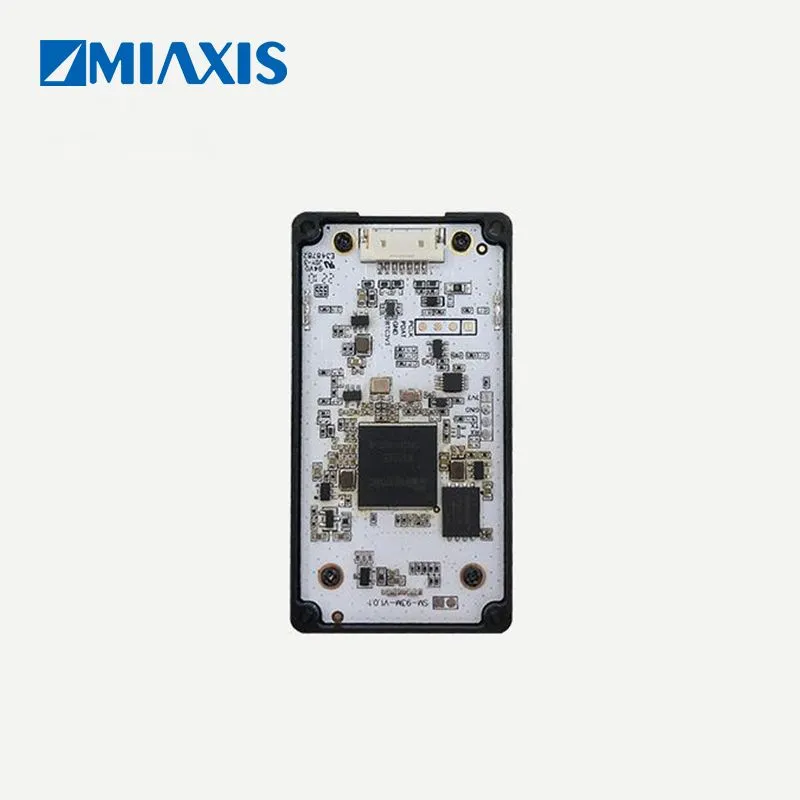

SM-93M, FAP30 Optical Fingerprint Scanner

OVERVIEW

MIAXIS SM-93M is an FBI-PIV & FAP30 certified optical fingerprint OEM module designed for identity authentication applications, with optional MOSIP compliance.
It features a compact design, durable glass platen, and optical sensing technology for high-quality image capture and reliable live finger detection.
The module supports ISO/ANSI-compliant template extraction and matching, and offers both USB and UART (TTL level) interfaces. SDKs for Windows, Android, and Linux are available for seamless integration.

● Standard Version: Focuses on basic fingerprint recognition functions (including PAD capability) to meet general security authentication needs.

● MOSIP Version (Optional): Compliant with MOSIP standards, adding support for SBI 2.0-FTM, suitable for national e-ID programs and large-scale digital ID authentication systems.

FEATURES

Certificates

● FBI PIV and FBI Mobile ID FAP30 certificates

● Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance

● iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified

● MOSIP Compatibility (Optional)

Live Fingerprint Detection

● Machine-learning-based live finger detection technology to differentiate fake fingers

● Auto-reject fake materials including silicon, paper, rubber and more

Easy Integration

● SDKs available for Android, MS Windows and Linux compatible

● UART&USB multiple interfaces

Advanced Algorithm

● Template options: MIAXIS, ISO 19794-2 & ANSI 378

● Miaxis proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance

● Value-added customised APIs for software integration

Dustproof and Waterproof

● IP65 dustproof and waterproof

Parameter Comparison

Specification	SM-93	SM-93M MOSIP Version
Product Size (L x W x H mm)	67.5 x 36.0 x 15.1	67.5 x 36.0 x 15.1
Sensor Type	Optical sensor	Optical sensor
Image Spec	FBI PIV&FAP30	FBI PIV&FAP30
Image Resolution	500 dpi	500 dpi
Image Size (W x H pixel)	400 x 500	400 x 500
Grey Scale	8bit, 256 levels	8bit, 256 levels
Image Format	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381
Compression Ratio	Up to 15:1	Up to 15:1
Quality Score	NFIQ v1.0	NFIQ v1.0
Presentation Attack Detection (PAD)	iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified	iBeta ISO/IEC 30107-3, Level 1 Presentation Attack Detection (PAD) certified
Live Finger Detection	Yes	Yes
Enrollment Time	≤0.5s (collect one image and upload by USB)	≤0.5s (collect one image and upload by USB)
Max. Encryption Capture Time (MOSIP)	/	≤4 seconds (Including capture, wsq, encryption and signing & transfer via USB)
FTM (MOSIP)	/	SBI 2.0-FTM supported security
Supply Voltage	DC5V±5% (USB powered)	DC5V±5% (USB powered)
Supply Current (USB powered)	≤200mA	≤200mA
Supply Current (Sleep Mode, USB powered)	≤50mA	≤50mA
Communication Interface	USB&UART	USB&UART
ESD Immunity (Sensor Surface)	±8kV contact discharge, ±15kV air discharge	±8kV contact discharge, ±15kV air discharge
Operating Temperature	-10°C to +50°C	-10°C to +50°C
Operating Humidity	20%RH～90%RH	20%RH～90%RH
Ingress Protection	IP65 (Sensor Surface)	IP65 (Sensor Surface)
Operating System Environment	Linux Kernel 4.15 or higher; Windows 7 or higher; Android 4.1 or higher	Linux Kernel 4.15 or higher; Windows 7 or higher; Android 4.1 or higher
Storage Temperature	-20°C to +60°C	-20°C to +60°C
Operating Humidity	20%RH～90%RH	20%RH～90%RH
Ingress Protection	IP65 (Sensor Surface)	IP65 (Sensor Surface)
Operating System Environment	Linux Kernel 4.15+; Windows 7+; Android 4.1+	Linux Kernel 4.15+; Windows 7+; Android 4.1+
