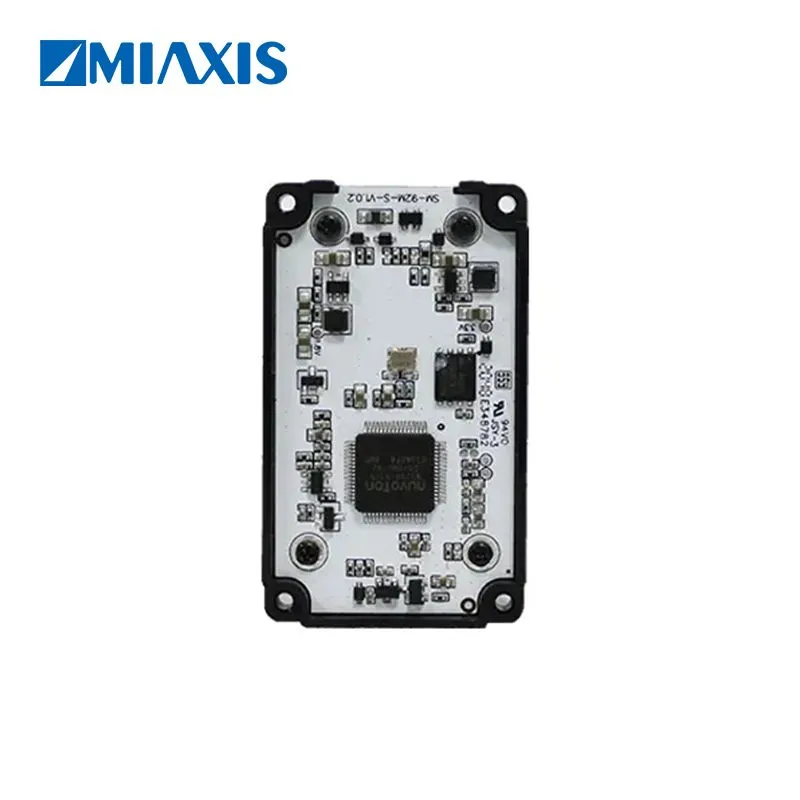

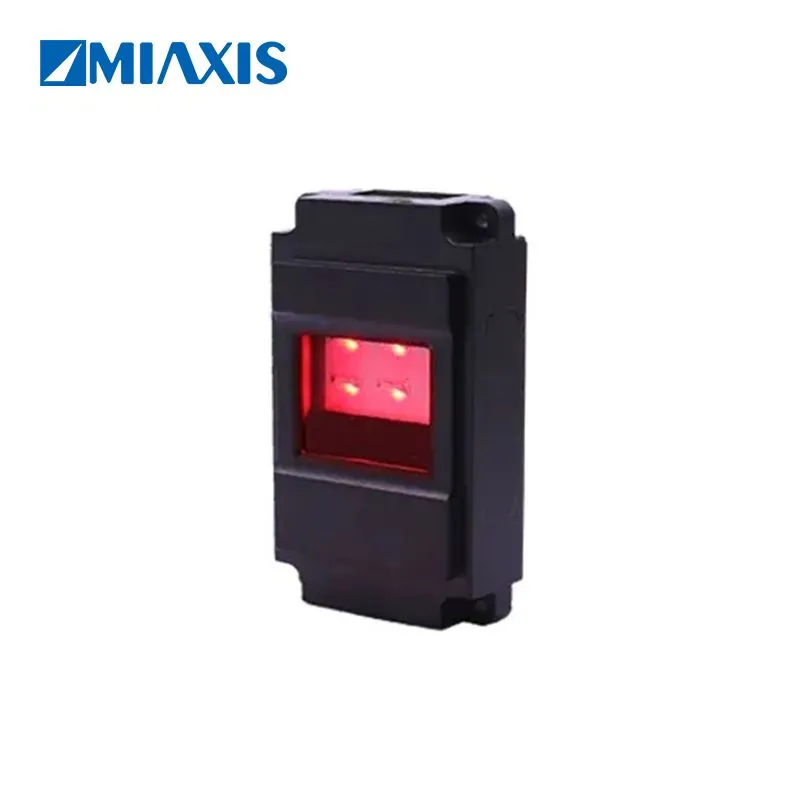

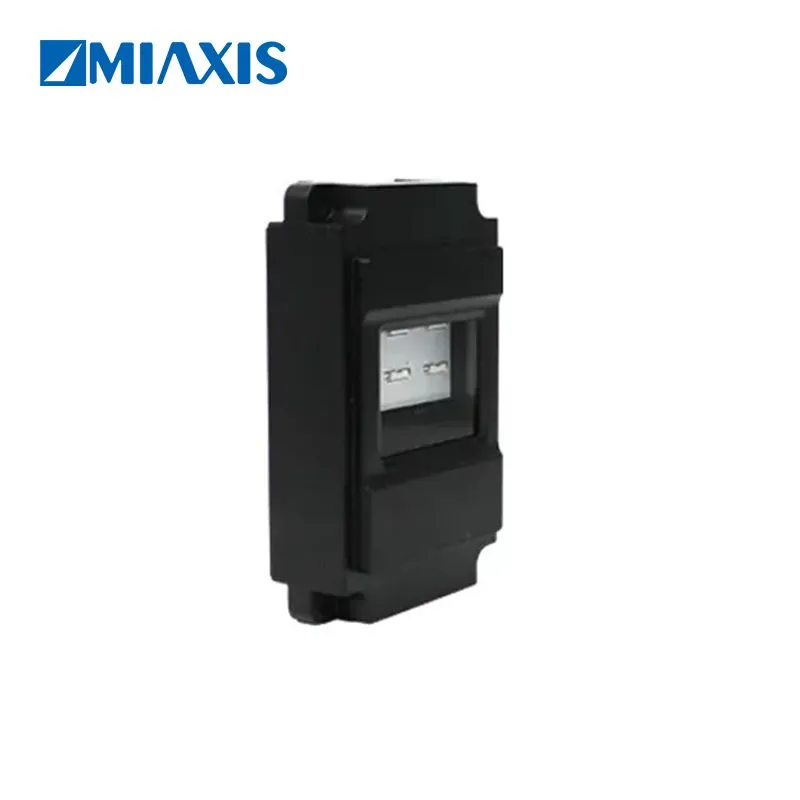

SM-92M Series, FAP20 Optical Fingerprint OEM Module

MIAXIS SM-92M Series (including SM-92M-S, SM-92M-P, SM-92M, SM-92M-C) are all FBI-PIV&FAP20 certified Optical Fingerprint OEM Modules, designed for large-scale digital ID authentication systems. All models support finger image capture, image/data encryption, live finger detection, and ISO/ANSI template extraction & match functions

Inquire Now Download Brochure

OVERVIEW

All models enable easy integration and are ideal for secure biometric authentication and national e-ID programs.

FEATURES

Certificates

● FBI PIV and FBI Mobile ID FAP20 certificates

● Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance

Live Fingerprint Detection

● Machine-learning-based live finger detection technology to differentiate fake fingers

● Auto-reject fake materials including silicon, paper, rubber and more

Easy Integration

● SDKs available for Android, MS Windows and Linux compatible

● UART&USB multiple interfaces

Advanced Algorithm

● Template options: MIAXIS, ISO 19794-2 & ANSI 378

● Miaxis proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance

● Value-added customised APIs for software integration

Dustproof and Waterproof

● IP65 dustproof and waterproof

Parameter Comparison

Specification	SM-92M	SM-92M-C	SM-92M-S	SM-92M-P
Product Size (L x W x H mm)	33.7 x 56.7 x 15.0	33.7 x 56.7 x 15.0	33.7 x 56.7 x 15.0	33.7 x 56.7 x 15.0
Sensor Type	Optical sensor	Optical sensor	Optical sensor	Optical sensor
Image Standard	FBI PIV&FAP20	FBI PIV&FAP20	FBI PIV&FAP20	FBI PIV&FAP20
Image Resolution	500 dpi	500 dpi	500 dpi	500 dpi
Image Size (W x H pixel)	300 x 400	300 x 400	300 x 400	300 x 400
Grey Scale	8bit, 256 levels	8bit, 256 levels	8bit, 256 levels	8bit, 256 levels
Image Format	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381	WSQ, JPEG2000, RAW, BMP, ISO 19794-4, ANSI 381
Quality Score	NFIQ v1.0	NFIQ v1.0	NFIQ v1.0	NFIQ v1.0
Live Finger Detection	Yes	Yes	Yes	Yes
Enrollment Time	≤0.5s (collect one image and upload by USB)	≤0.5s (collect one image and upload by USB)	≤0.5s (collect one image and upload by USB)	≤0.5s (collect one image and upload by USB)
Max. Encryption Capture Time (MOSIP)	/	/	<3s (by USB communication, including capture, processing, encryption and signing)	<3s (by USB communication, including capture, processing, encryption and signing)
FTM	/	/	SBI 2.0-FTM supported security	SBI 2.0-FTM supported security
Supply Voltage	DC5V±5% (USB powered)	DC5V±5% (USB powered)	DC5V±5% (USB powered)	DC5V±5% (USB powered)
Supply Current (USB powered)	≤200mA	≤200mA	≤200mA	≤200mA
Supply Current (Sleep Mode, USB powered)	≤50mA	≤90mA	≤50mA	≤90mA
Communication Interface	USB, UART, Type-C (on request)	USB 2.0, Type-C (on request)	USB, UART, Type-C (on request)	USB 2.0, Type-C (on request)
Weight	33g	33g	33g	33g
ESD Immunity	±8kV contact discharge; ±15kV air discharge (Sensor Surface)	±8kV contact discharge; ±15kV air discharge (Sensor Surface)	±8kV contact discharge; ±15kV air discharge (Sensor Surface)	±8kV contact discharge; ±15kV air discharge (Sensor Surface)
Operating Temperature	-10°C to +50°C	-10°C to +50°C	-10°C to +50°C	-10°C to +50°C
Operating Humidity	20%RH ~ 90%RH	20%RH ~ 90%RH	20%RH ~ 90%RH	20%RH ~ 90%RH
Ingress Protection	IP65 (Sensor Surface)	IP65 (Sensor Surface)	IP65 (Sensor Surface)	IP65 (Sensor Surface)
Operating System Environment	Linux Kernel 4.15+; Windows 7+; Android 4.1+	Linux Kernel 4.15+; Windows 7+; Android 4.1+	Linux Kernel 4.15+; Windows 7+; Android 4.1+	Linux Kernel 4.15+; Windows 7+; Android 4.1+
