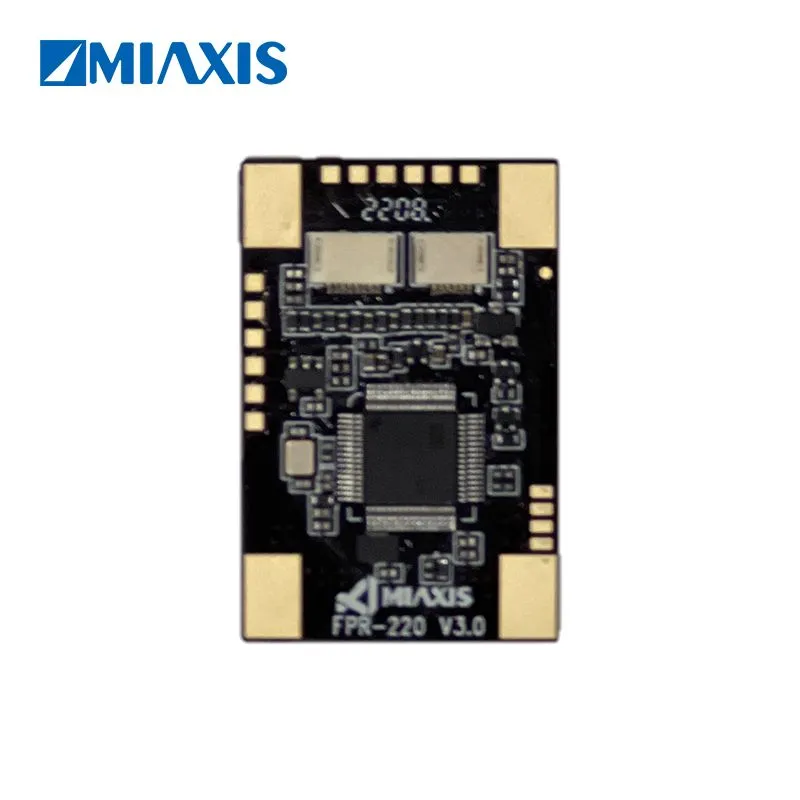

FPR-220 FBI-PIV Certified Capacitive Fingerprint Module

MIAXIS FPR - 220 is an integrated Capacitive Fingerprint Module, featured with a large active platen area and FBI - PIV certified high quality 256×360 pixel image in the biometric enrollment process. Its compact design enables easy integration into volume - limited mobile or portable hardware terminals for various identification applications.

Inquire Now Download Brochure

OVERVIEW

FEATURES

Certificates:

● FBI-PIV certified Mobile ID FAP10

● Biometric standard: ISO 19794, ANSI 381, ANSI-378, WSQ, JPEG2000, MINEX III compliance

High Image Quality

● Capacitive fingerprint technology with superior image quality

Compact Design

● Extreme compact design at 4.7mm thick

Strong Adaption

● Works well with dry, moist and rough fingerprints

Easy Integration

● SDKs available for Android, MS Windows and Linux compatible

● UART&USB multiple interfaces

Advanced Algorithm

● Template options: MIAXIS, ISO 19794-2 & ANSI 378

● MIAXIS proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance

● Live Fingerprint Detection(LFD) algorithm to differentiate fake fingers

Parameter

Sensor Type	Capacitive Sensor, TLK1D	Dimensions	35.2×23.1×4.7mm(L x W x H)
Image Resolution	508dpi	Operating Temperature	－10℃～＋55℃
Image Size	256×360 pixel	Storage Temperature	－20℃～＋60℃
Sensing Area	12.8×18.0mm	Operating Humidity	20%RH～90% RH
Live Finger Detection	Yes	Supply Voltage	DC 5V±5%
Image Gray Scale	8bit, 256 levels	Supply Current	≤200mA(USB powered) ≤50mA(USB powered at sleep mode)
Enrollment Time	≤250ms(placement to template)	Support OS	Windows, Android, Linux
Image Format	WSQ, JPEG2000, ISO 1974-4, ANSI 381	ESD Immunity	±8kV contact discharge ±15kV air discharge
